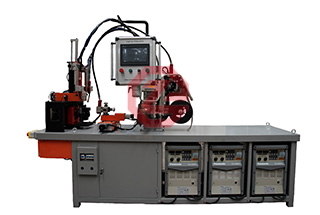

Upright Base Welding Machine

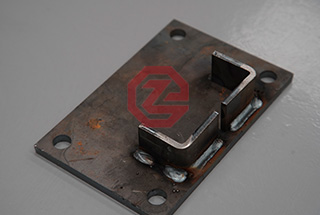

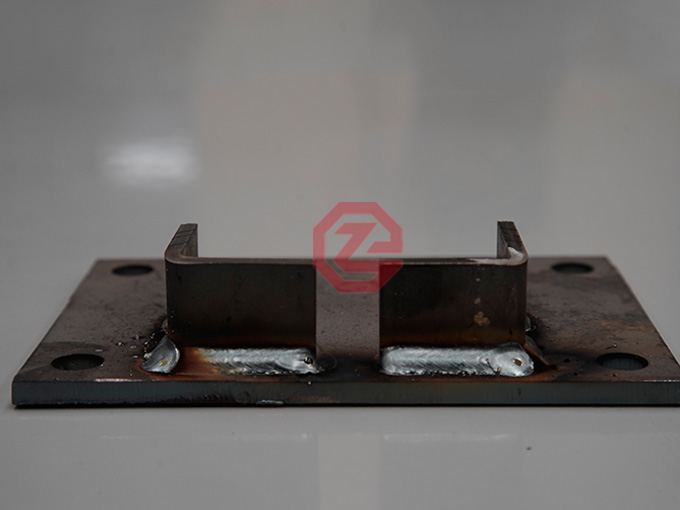

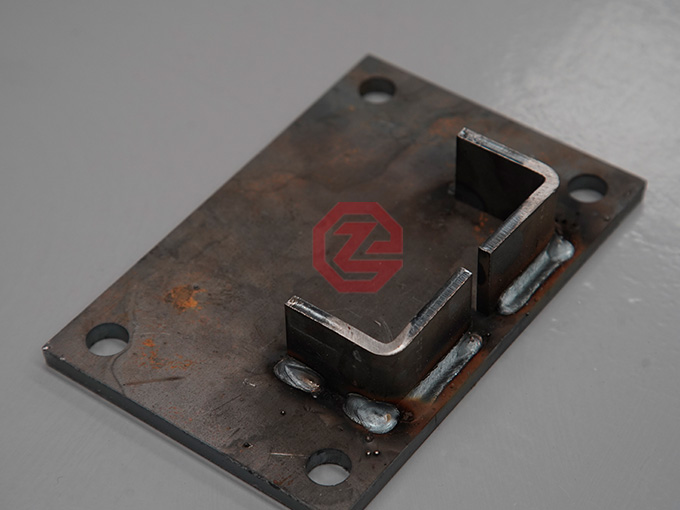

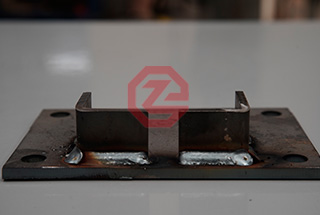

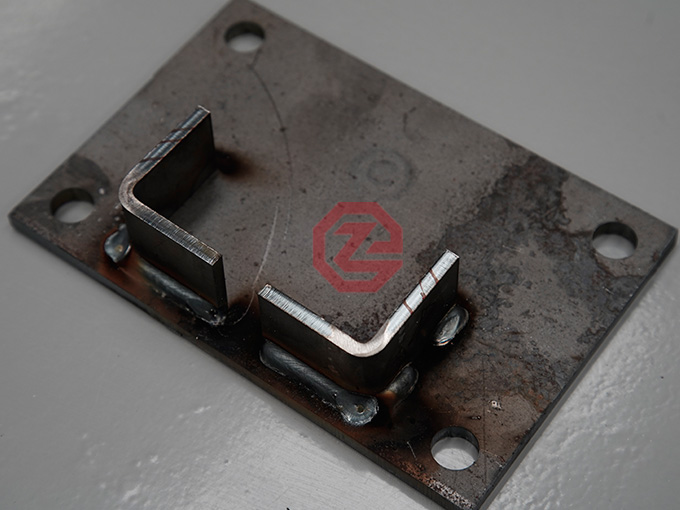

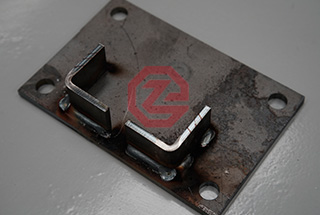

This machine is used to weld upright base. It adopts Panasonic YD-280 power source, The PLC system control the three welding torches working at the same time, welding 3 sides of the upright base. The welding speed is about 15s/pc. It can weld about 150PCS to 180PCS upright base per hour.

Welding Edges: 3 Edges

Qualified Rate: ≥96%

Welding Seam: ≤1.8mm

Welding Speed: 150PCS/Hour

Inquire Now

Email:info@corpgz.com

MAIN PARTS

The machine consists of PLC Control System, power source, steep motor, rotary system, wire feeder system etc. Each part adopts famous and stable components, each component uses high quality material, assorted machine, pneumatic system and electrical control system use advanced and reliable brand. Each unit of machine is running reliable, long use and convenient operation and maintenance can be insured.

FEATURES

Save Costs

One normal welder can operator the machine, no need welding expert, saving costs.

High Efficiency

Three welding torches are working at the same time, it can weld about 150PCS to 180PCS upright base per hour.

High Adaptability

The welding seam can up to 1.8mm and the welding thickness can up to 5mm.

High Quality

The machine adopts advanced shaping system which make sure the Qualification Rate ≥96%.

parameter

No.	Item	Unit	Parameters
1	Welding Edges		3 Edges
2	Base Sizes	mm	Based on client’s drawing
3	Welding Speed	pc/Hour	About 150PCS to 180PCS per hour
4	Welding Seam	mm	≤1.8mm
5	Qualified Rate	%	≥96%
6	Suitable Gas		CO2 or Mixed gas (20% CO2 and 80% Argon gas)
7	The General Power	KW	9KW
8	Size of the Machine	m	2.4m0.8m2m
9	Type of The Machine		GZ-3E-100
