4 Edges Beam Welding Machine

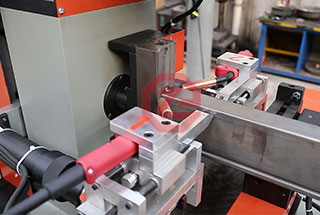

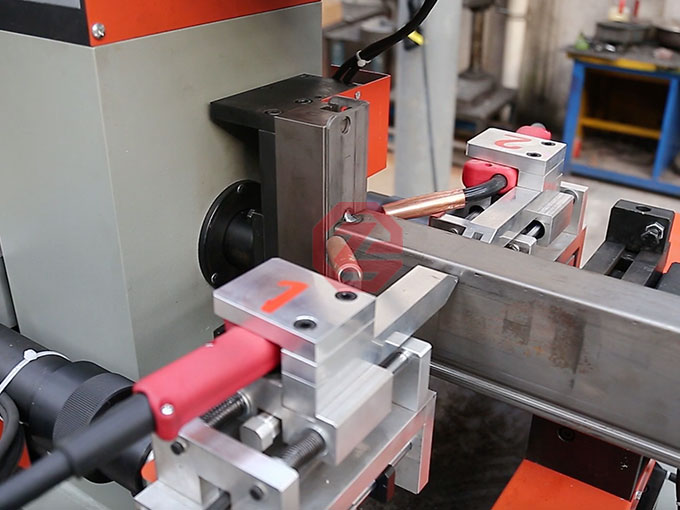

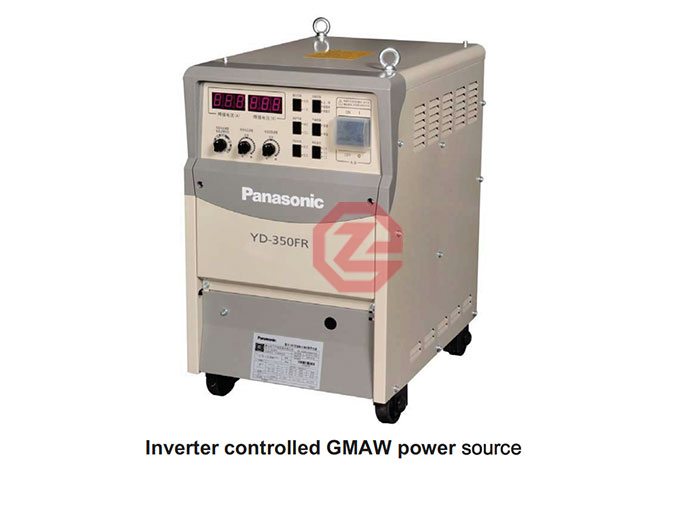

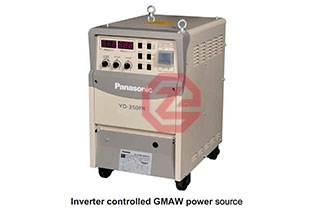

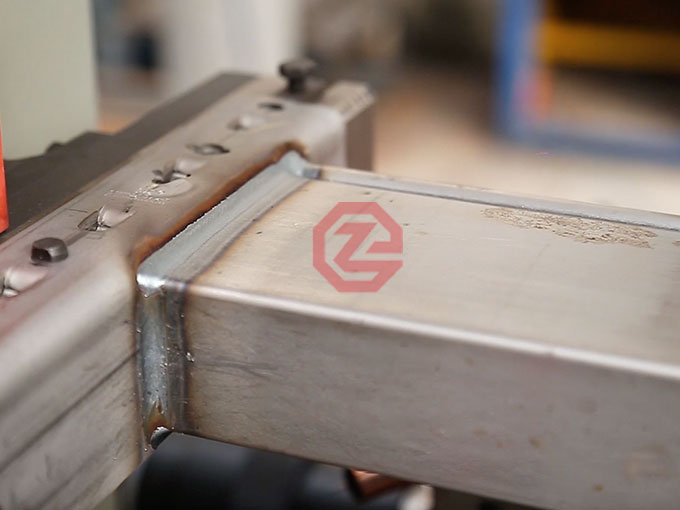

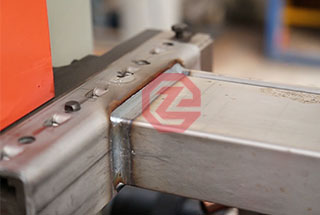

This machine is used to weld upright beam and connector together. It adopts Panasonic YD-350FR power source, The PLC system control the four welding torches working at the same time, welding 4 sides of the beam of each end. The welding speed is about 15s/pc. It can weld about 60PCS beams per hour.

Welding Edges: 4 Edges

Qualified Rate: ≥96%

Beams Length: 1.0m to 4.0m

Welding Speed: 60PCS/Hour

Inquire Now

Email:info@corpgz.com

MAIN PARTS

The machine consists of PLC Control System, power source, step motor, ball screw, linear guide etc. Each part adopts famous and stable components, each component uses high quality material, assorted machine, pneumatic system and electrical control system use advanced and reliable brand. Each unit of machine is running reliable, long use and convenient operation and maintenance can be insured.

FEATURES

Widely Application

It can weld Box Beam, Step Beam and C Channel etc, from 0.8m to 4.0m length.

High Efficiency

Four welding torches are working at the same time, it can weld about 60PCS beams per hour.

High Adaptability

The welding seam can up to 1.8mm and the welding thickness can up to 5mm.

High Quality

The machine adopts advanced shaping system which make sure the Qualification Rate ≥96%.

parameter

No.	Item	Unit	Parameters
1	Welding Edges		4 Edges
2	Beam Sizes	mm	Based on client’s drawing
3	Beam Length	m	1.0m to 4.0m
4	Type of Beam		Box beam, P beam etc
5	Welding Speed	pc/Hour	About 60PCS per hour
6	Welding Seam	mm	≤1.8mm
7	Qualified Rate	%	≥96%
8	Suitable Gas		CO2 or Mixed gas (20% CO2 and 80% Argon gas)
9	The General Power	KW	15-18KW
10	Size of the Machine	m	5.62m1.05m1.98m
11	Type of The Machine		GZ-4E-4M
12	CE Certificate Approved		YES
