Upright Roll Forming Machine

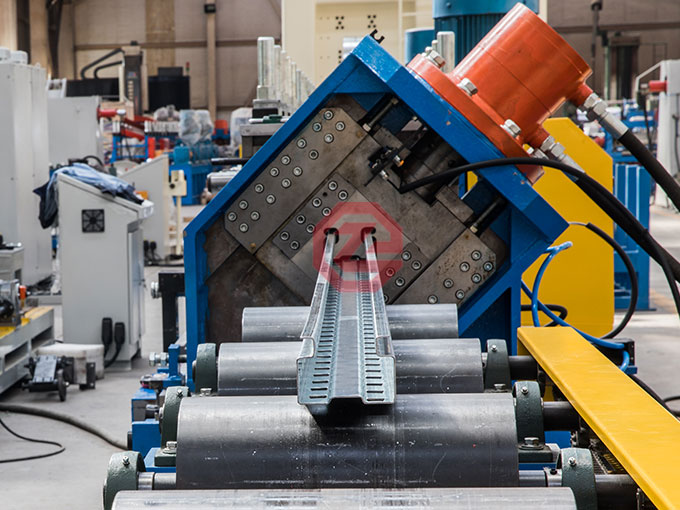

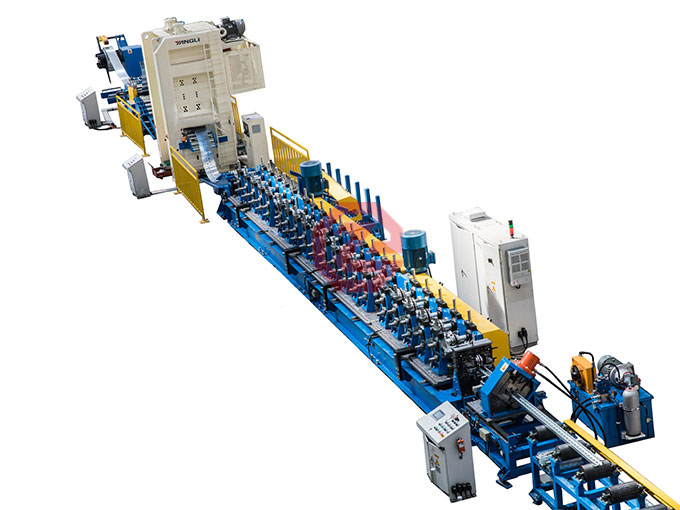

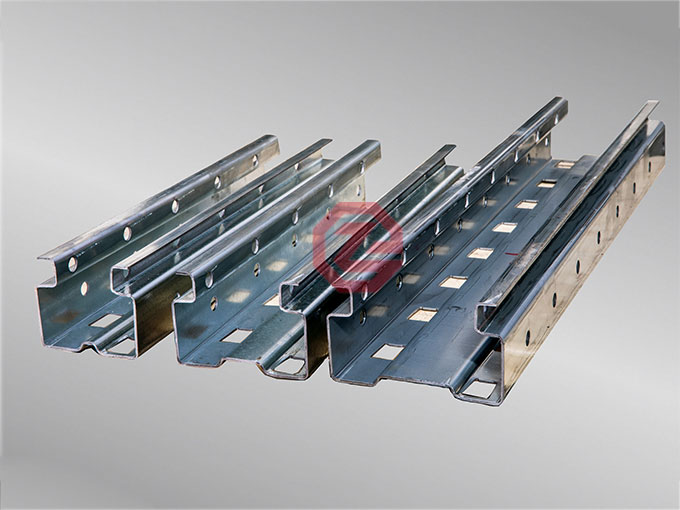

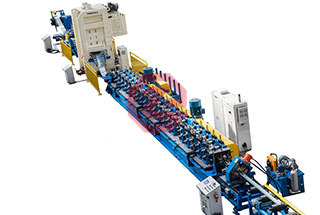

Upright Roll Forming Machine has auto flow production of uncoiling, butt welding, leveling, and cutting can be combined perfectly. All the dimensions are processed by machining center, high precision. One operator could run the whole machine. The producing assistance time, the equipment can stay stable in producing. The production speed can reach 20m/min.

Line Speed: 20m/min

Yield Strength: ≤345Mpa

Roller Material: SKD11

Thickness Range: 1.5 to 3.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

The machine consists of Hydraulic Decoiler, Leveling Device, Servo Feeding Device, Punching Device, Feeding & Guiding Device, Roll Forming M/C, Straightening Device, Hydraulic Cutting Device, Automatic Discharge Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

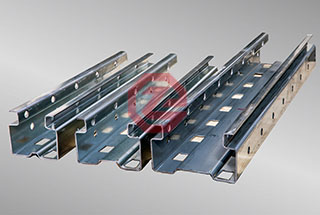

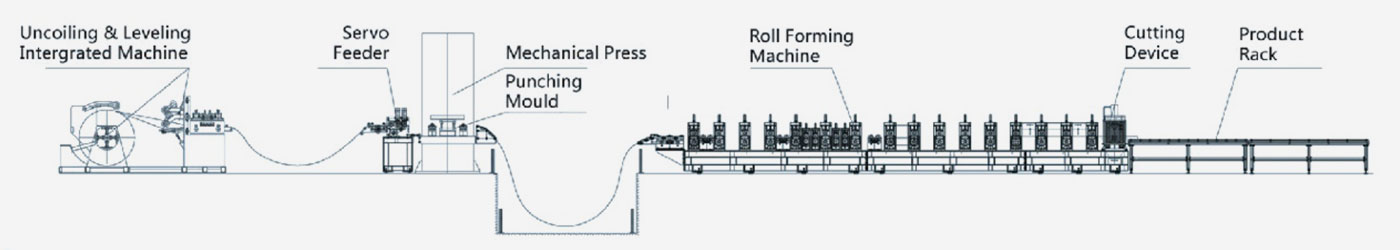

FLOW CHART

Workflow

Un-Coiler

Leveling

Servo Feeding

Punching

Roll Forming

Straightening

Hydraulic Cutting

Automatic Discharging

FEATURES

WIDTH ADJUSTING

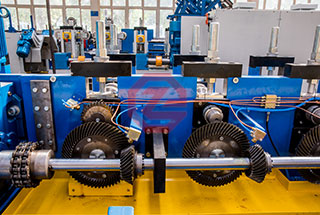

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

FORMING ROLLER

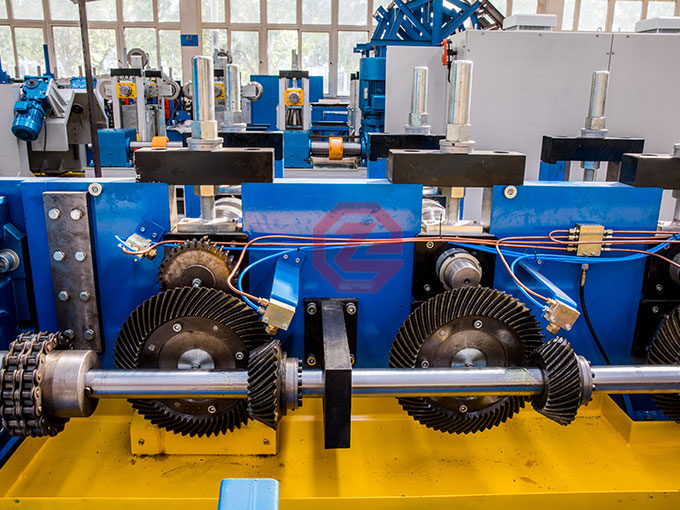

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Pre-galvanised steel or black hot rolled steel etc
		Strength	MPa	≤345Mpa
		Thickness	mm	1.5mm—3.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	80-110mm
3	Line speed		m/min	20m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	About 76KW
8	Electric control system			PLC automatic control system
