Shelving Base Panel Roll Forming Machine

Shelving Base Panel Roll Forming Machine

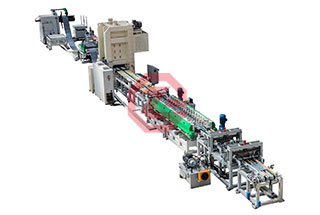

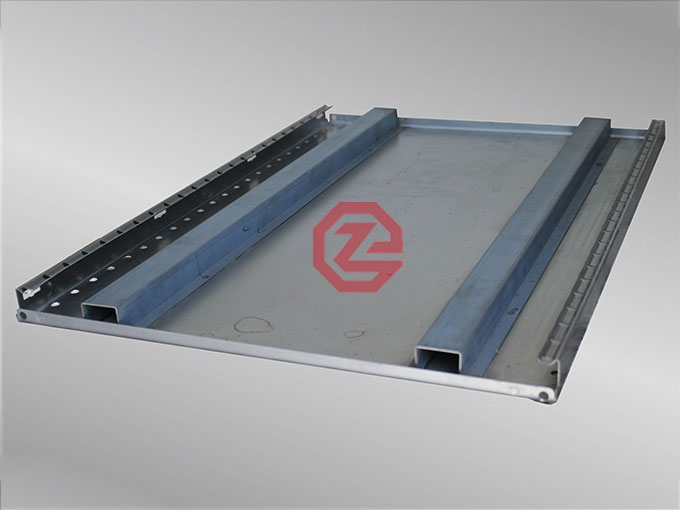

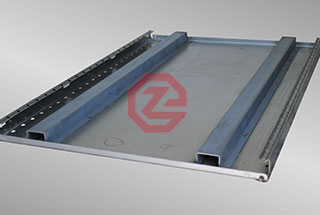

Shelving Base Panel Roll Forming Machine was delivered out on May 10th, 2018. The box-shape shelf is widely used in the racking system. The width and length of shelf can be set on the touching screen easily. Numeric control punching tools make the holes under the program. The roll forming machine can even shape the ribs on the profile discontinuously.

Line Speed: 6-9PCS/min

Yield Strength: ≤235Mpa

Roller Material: SKD11

Thickness Range: 0.5 to 1.0mm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

The machine consists of Hydraulic Decoiler, Butt Welding Device, Leveling Device, Servo Feeding Device, Mechanical Punching Device, Feeding & Guiding Device, Roll Forming M/C, Cutting Device, Ran-out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

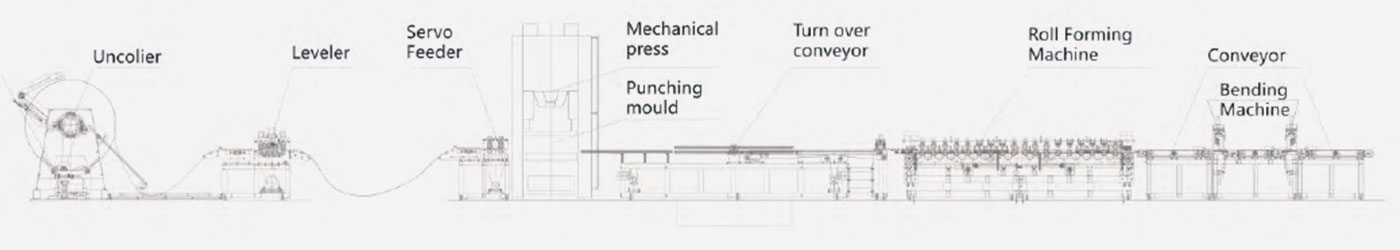

FLOW CHART

Workflow

Uncoiling

Leveling

Servo Feeding

Punching

Turnover Conveyor

Roll Forming

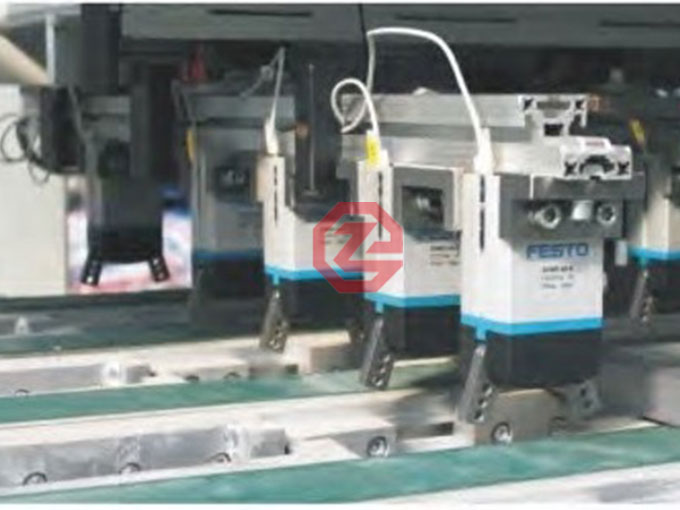

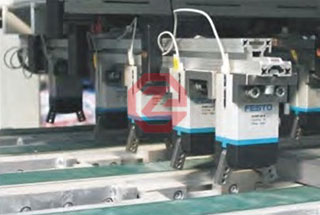

Bending

Ran out

FEATURES

WIDTH ADJUSTING

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Q300 cold-rolled steel plate, galvanized plate, color-paint plate, stainless steel plate
		Strength	MPa	≤235Mpa
		Thickness	mm	0.5 to 1.0mm
		Coil internal diameter	mm	508mm
		Coil weight	T	5T
2	Specification		mm	300mm—600mm
3	Line speed		pieces/min	6-9 pieces/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	21.5KW
8	Electric control system			PLC automatic control system
9	Dimension(LWH)		m	30mX1.3mX1m
