Frame Bracing Roll Forming Machine

This line is used to produce kinds of Frame Bracings. It adopts Siemens or Schneider PLC system, high degree of automation, easy to operate and efficiently. All the dimensions are processed by machining center, high precision. One operator could run the whole machine. The producing assistance time, the equipment can stay stable in producing. The max speed can up to 35m/min.

Line Speed: 35m/min

Yield Strength: ≤235Mpa

Roller Material: SKD11

Thickness Range: 0.8 to 1.2mm

Inquire Now

Email:info@corpgz.com

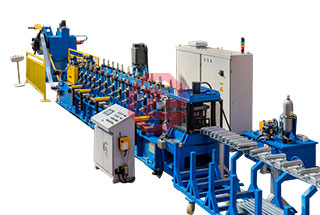

MAIN PARTS

The machine consists of Hydraulic Decoiler, Feeding & Guiding Device, Leveling Device, Feeding & Guiding Device, Roll Forming M/C, Hydraulic Cutting & Punching Device, Ran Out Table, Hydraulic Station, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

FLOW CHART

Workflow

Un-Coiler

Loop

Feeding and Guiding

Leveling

Feeding

Roll Forming

Cutting and Punching

Ran-Out

FEATURES

WIDTH ADJUSTING

The servo motor drives the archway sliding along the main axis through the guide rail to adjust the distance on both sides, adjusting the different width.

FORMING CRAFT

The forming craft is designed by trained and experienced professional technician, with Germany import COPRA software design, verify and FEA analysis.

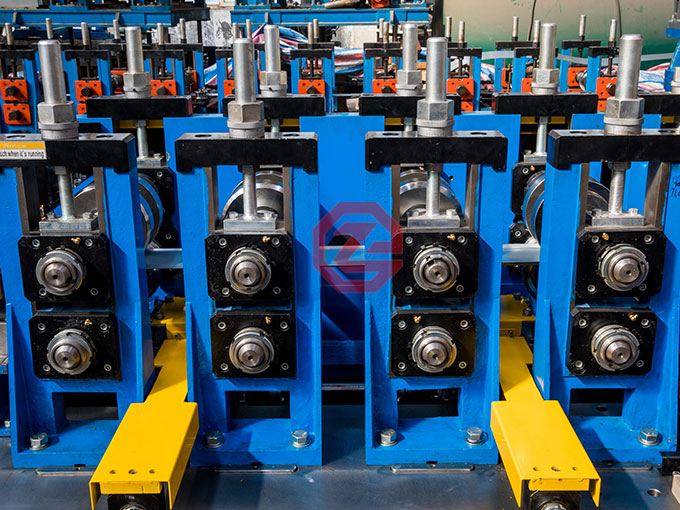

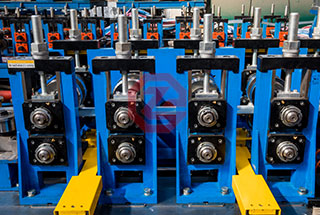

FORMING ROLLER

The forming roller adopts combinatorial structure, speed difference and roll forming resistance is small, can make sure the precision and stability.

ROLLER SHAFT

The roller shaft adopts well carbon steel and tempering and hardening process to make sure profile precision, CNC precision machining processing.

parameter

No.	Item		Unit	Parameters
1	Suitable material	Type		Q235 etc
		Strength	MPa	≤235Mpa
		Thickness	mm	0.8mm to 1.2mm
		Coil internal diameter	mm	508mm
		Coil weight	T	3T
2	Specification		mm	20mm-30mm
3	Line speed		m/min	35m/min
4	Roller material			D2 quenching treatment
5	Roller driven type			External chain transmission
6	Operating system			Windows2000
7	Total motor power		KW	About 32KW
8	Electric control system			PLC automatic control system
