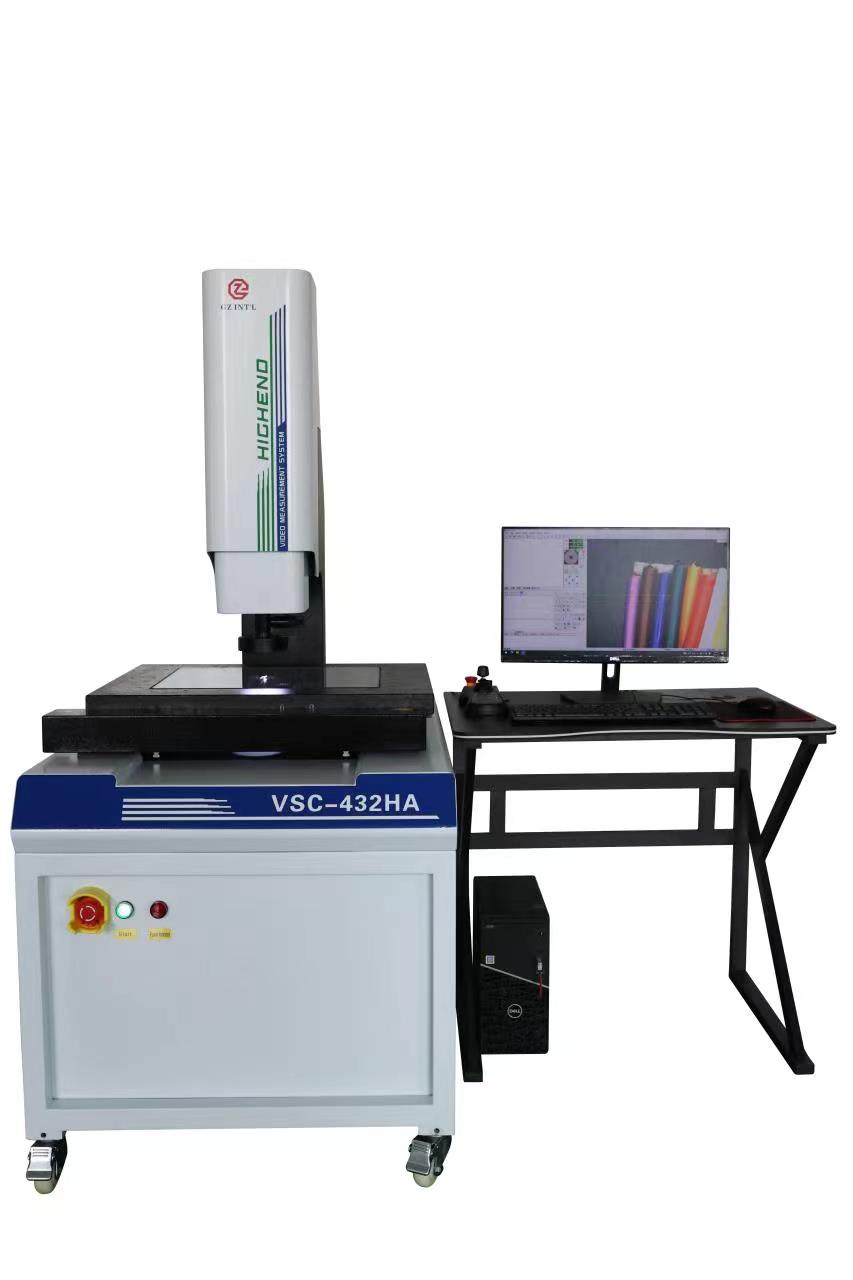

VMS432H + Z Axis Auto Zoom

GZ CNC Video Measuring Machine VMS-H series is an automatic optical image measuring instrument ,equipped with powerful software and hardware technology, which can automatically accurate measure points, lines, circles, arcs, ellipses, angles, curves, lengths, widths, heights, hole distances, space distances, Pin spacing, thickness, arc, diameter, radius, groove, R angle and other geometric elements. It adopts original imported screw driving and servo control technology, and combined with accurate measurement software to achieve efficient and accurate mass products measurement, to provide help for the precision work-parts inspection and quality control. It is widely used in industries such as hardware, plastics, electronics, molds, hardware processing, mobile phone accessories, computer accessories, auto parts, clocks and watches, circuit boards and other industries.
Optical Lens: Image magnification 28X-180X
CCD: HIKROBOT 1.3 million pixel digital camera
X/Y axis Measuring Accuracy: E2(X/Y)=(2.0+L/200)
Grating ruler: LAMOTION 0.5um high precision metal patch ruler
MAIN PARTS
FEATURE
PARAMETERS
MAIN PARTS
The machine consists of Motor, Guide, Grating ruler, Optical Lens Cabinet, Beautiful, concise and generous appearance design.
Each part adopts famous and stable components, each component uses high quality material, and motor control system use advanced and reliable brand. Each unit is running reliable, long use and convenient operation and maintenance can be insured.

FEATURE

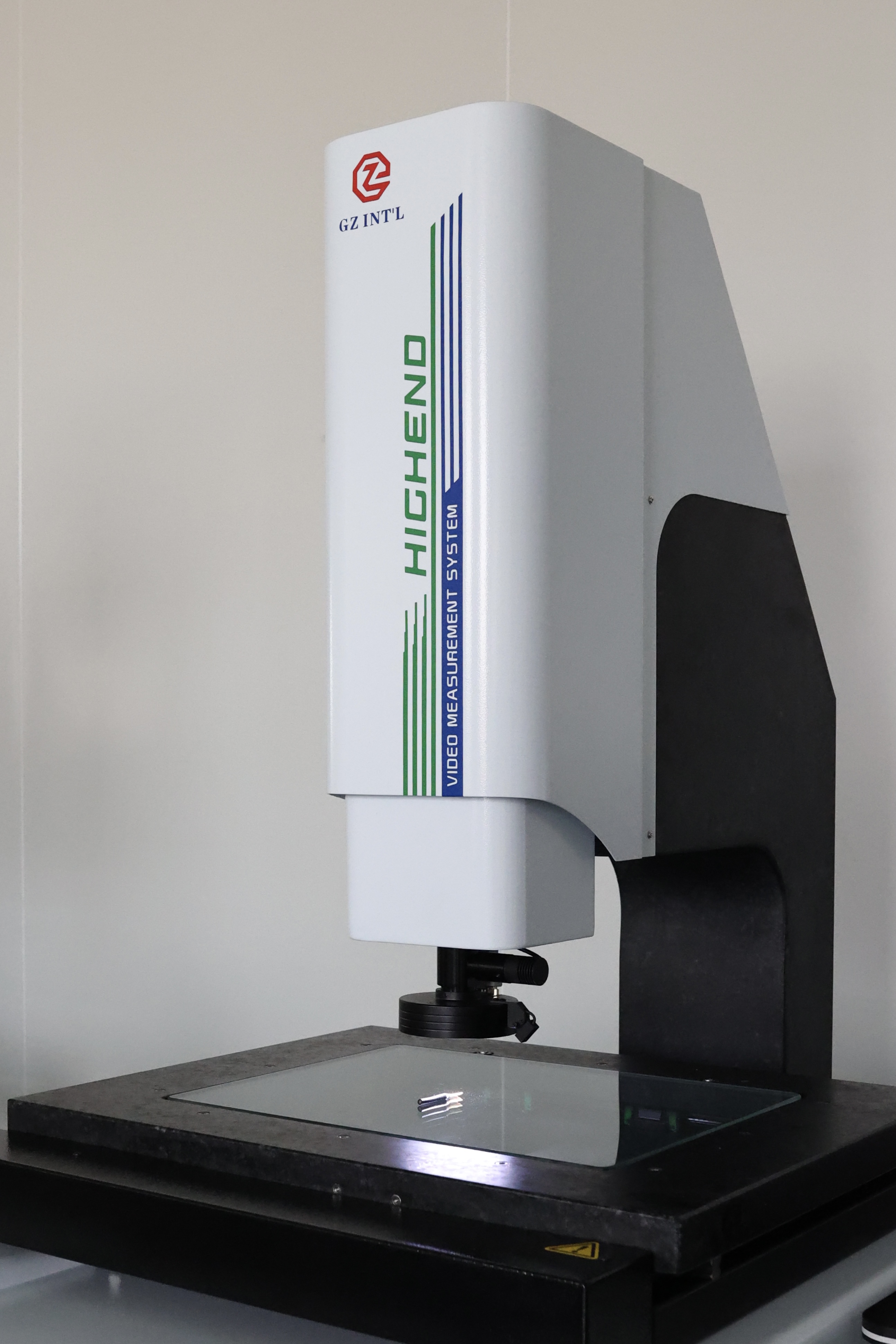

Natural Granite
00-grade natural granite base, column and worktable make it strong rigidity and small deformation to ensure stable accuracy.
Precise Positioning:
Precise ball screw drive design, realizing fast movement and precise positioning.
Precision Linear Guide:
Three-axis adopts precision linear guide to ensure stable accuracy and machine service life.
Servo Motor:
Adopt servo motor to ensure positioning accuracy, thereby ensuring repeatability.
PARAMETERS
Model VMS-322H VMS-432H VMS-542H
Travel (mm) 300X200X200 400X300X200 500X400X200
Dimension (L)X(W)X(H)(mm) 660X900X1700 880X1000X1700 1000X1100X1750
Weight(kg) 250 280 350
Measuring Load (kg) 25 30 35
X/Y axis Measuring Accuracy (μm) E2(X/Y)=(2.0+L/200)
Grating ruler LAMOTION 0.5um high precision metal patch ruler
Guide Taiwan SHAC high precision linear guide
Drive Method Taiwan SHAC high-precision ball screw
CCD HIKROBOT 1.3 million pixel digital camera
Lighting Under contour light LED parallel profile cold light

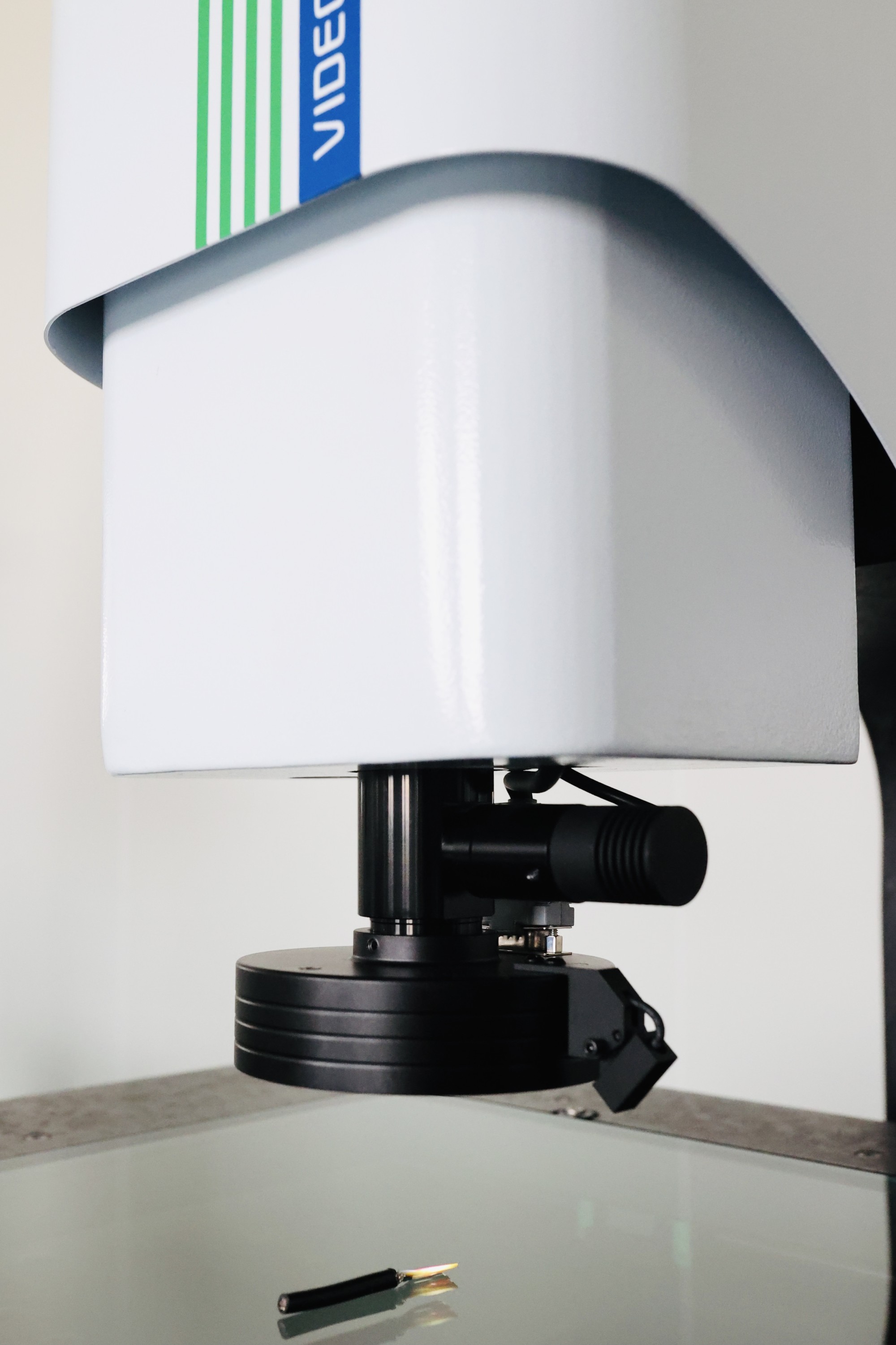

  Surface Light Programmable LED four-ring and eight-zone surface cold light source with laser pointer
Optical Lens Original POMEAS high-definition manual zoom with position lens
(image magnification 28X-180X)
Motor Three-axis original Japan Nidec servo motor

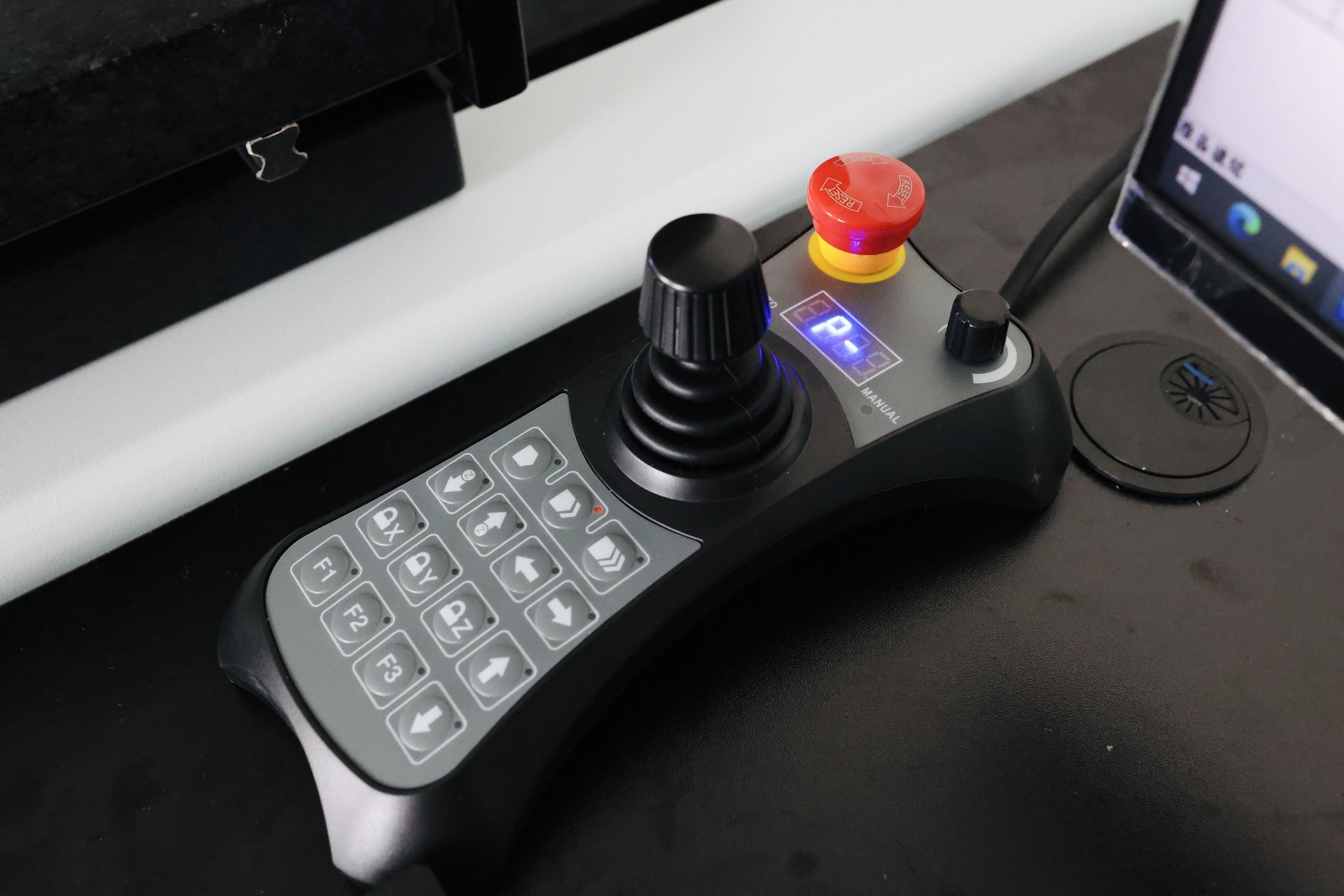

Control System ACT420 precision control system
Measuring Software Precision measurement software INSPEC-CNC
Working Environment Temperature 20℃±3℃, temperature change <2℃/hr, humidity 30~80%
Power 220V/50Hz/5A
  Remarks: Domestic/imported probe and 3D measuring software can be selected to achieve
           precision height measurement function.
