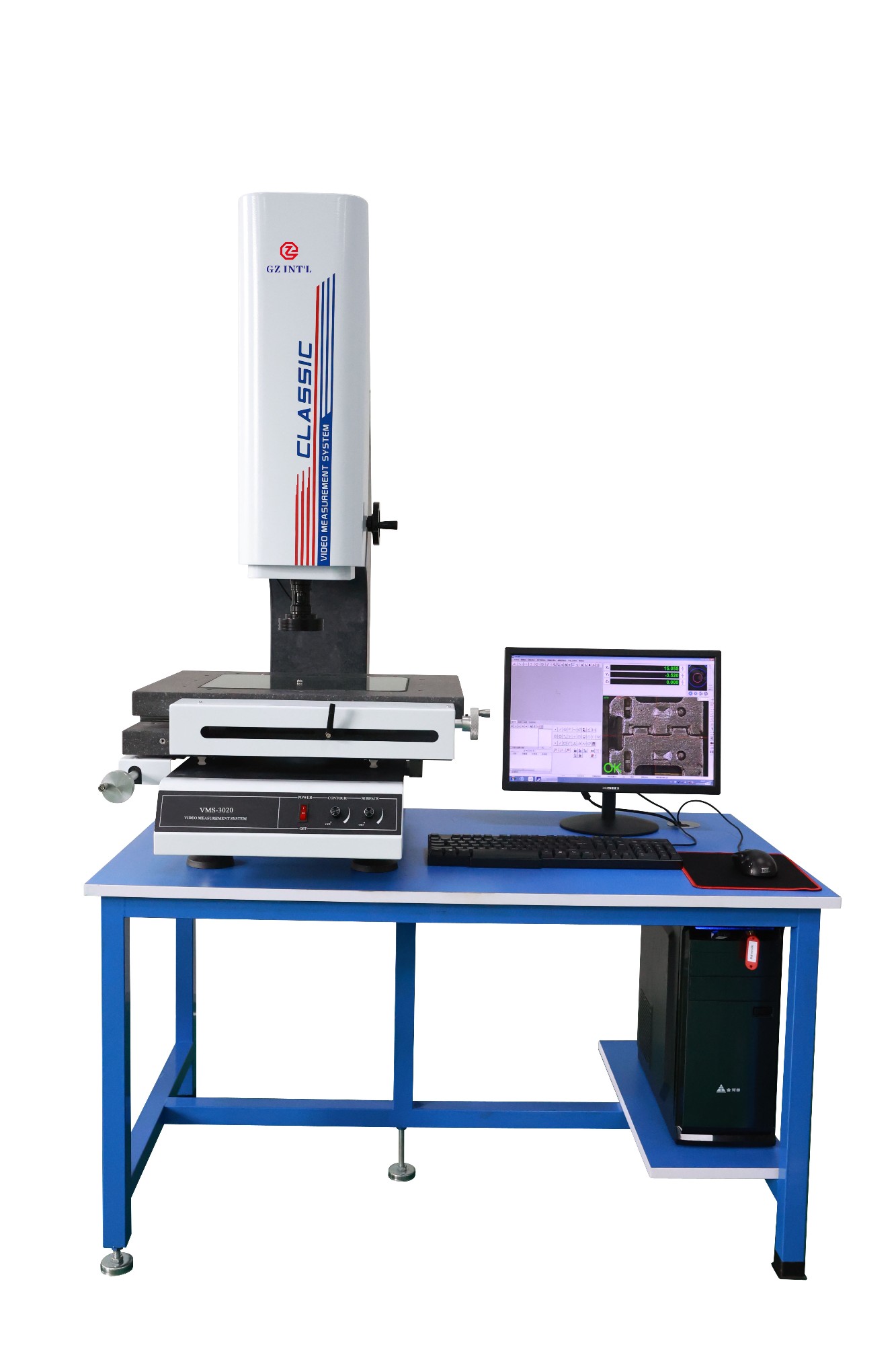

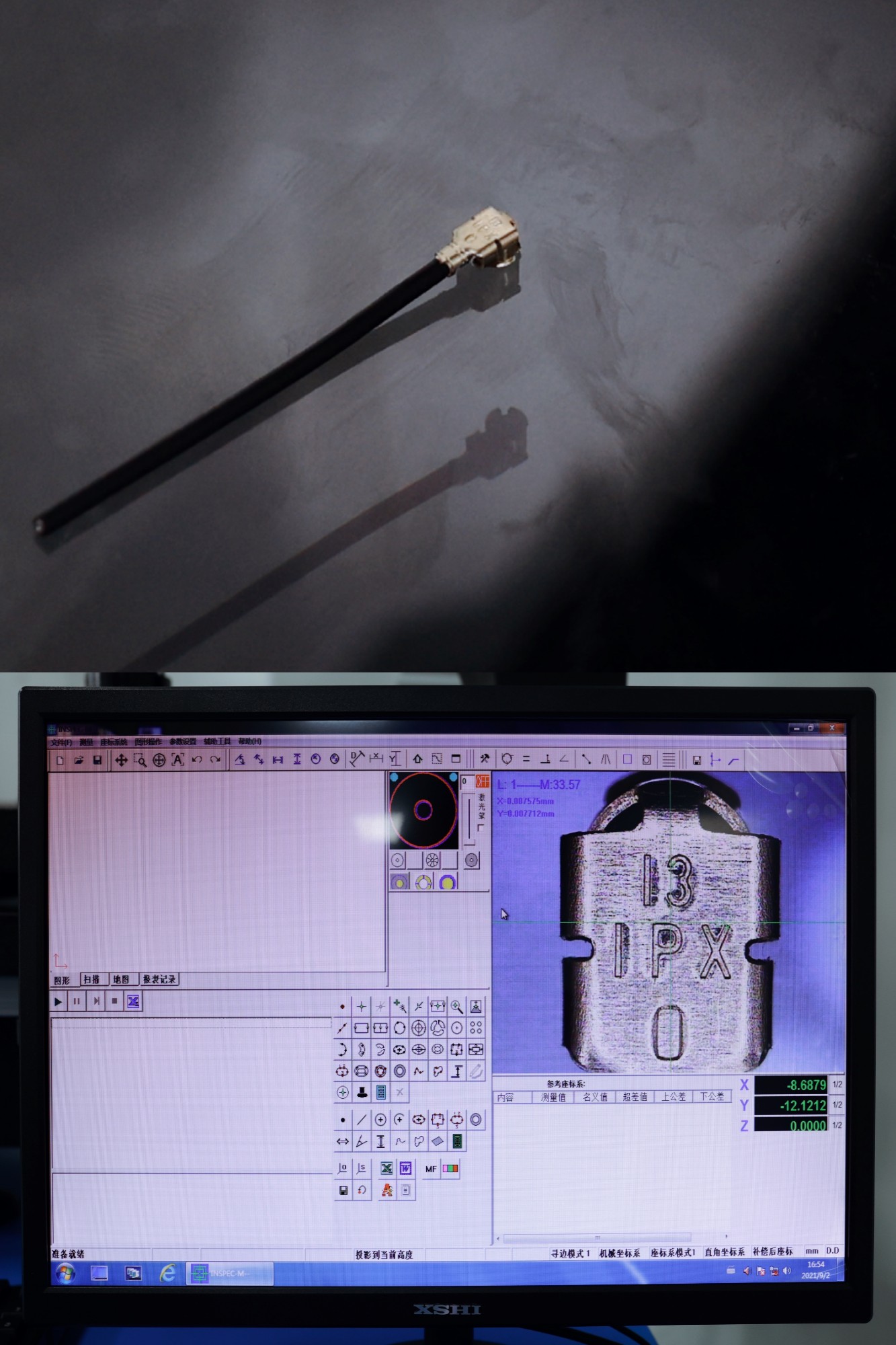

GZ 3020/4030/5040 Series equipped with powerful software and hardware technology, which can accurate measure points, lines, circles, arcs, ellipses, angles, curves, lengths, widths, heights, hole distances, space distances, Pin spacing, thickness, arc, diameter, radius, groove, R angle and other geometric elements. The base, column and worktable are all made by 00 grade Jinan granite, with stable structure and reliable accuracy. Probe and laser can be added to realize simple three-dimensional measurement.The grating ruler adopts the trusted high-resolution profile ruler of the old domestic military industry brand. Use special measurement software to process the surveyed graphics, the measurement data and graphics,can be directly converted to Excel, Word and CAD to make reports! The software has a friendly interface and very powerful functions. The system supports various functions of data processing , display ,input and output , especially the work piece straightening function. With RS-232 interface connected to the computer and specialized measuring software , it can deal with the mapping graphics and all the measurement data or graphic can be directly converted to Word, Excel, AutoCAD reports Available in a variety of specifications, and customized according to customer requirements. It is widely used in industries such as hardware, plastics, electronics, molds, hardware processing, mobile phone accessories, computer accessories, auto parts, clocks and watches, circuit boards and other industries.
Ex.y: ≤(2.5+L/200 um)
Video Magnification: 26-130X
Zoom Lens magnification: 0.7-4.5X
Camera: 1/2' Color CCD Camera (1200 TVL)
MAIN PARTS
FEATURE
PARAMETERS
MAIN PARTS

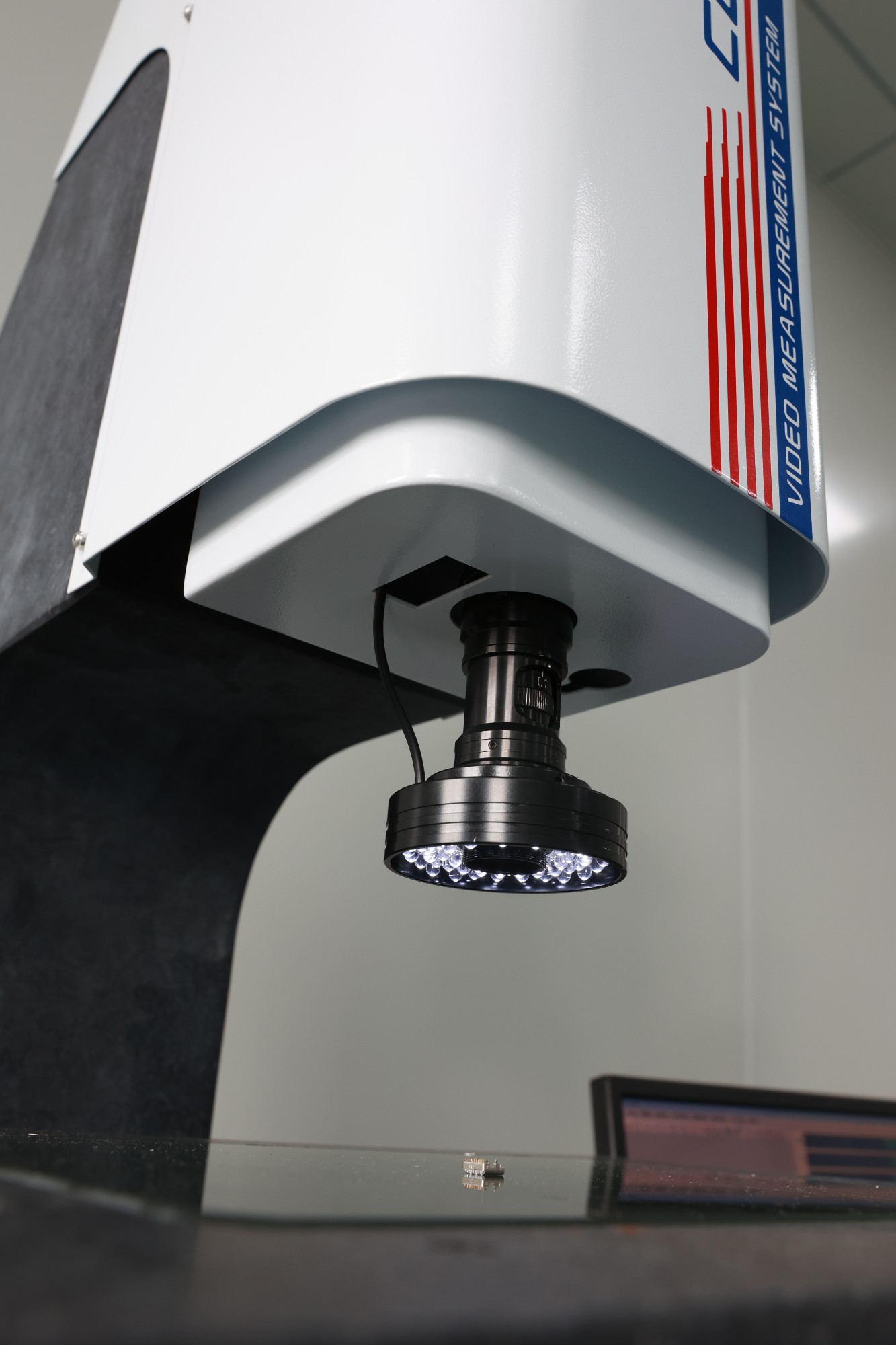

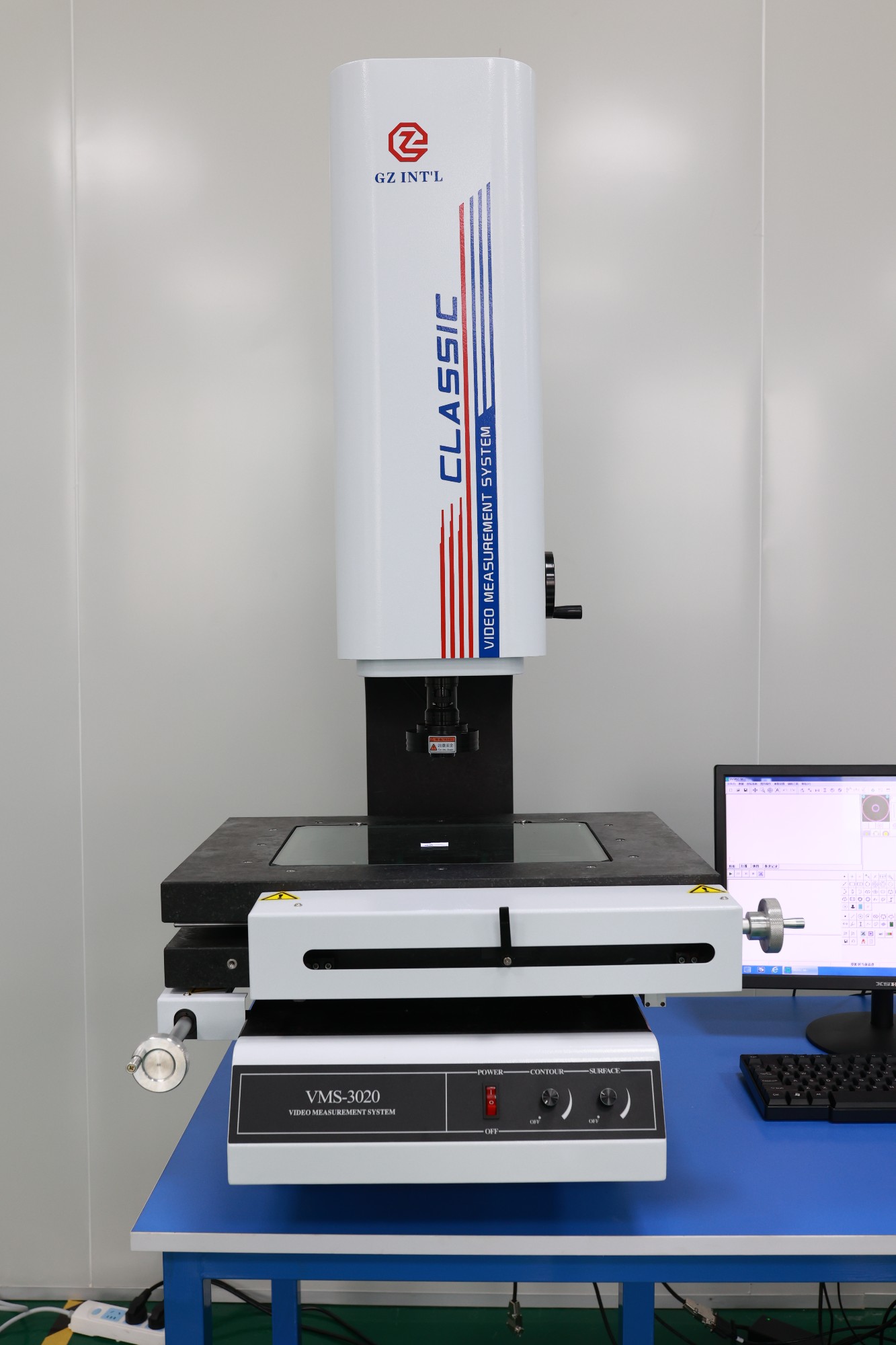

The machine consists of Zoom lens, Guide, Grating ruler, Optical Lens Cabinet.
Each part adopts famous and stable components, each component uses high quality material, and use advanced and reliable brand. Each unit is running reliable, long use and convenient operation and maintenance can be insured.

FEATURE
Granite Base
00-grade natural granite base, column and worktable make it strong rigidity and small deformation to ensure stable accuracy.
High-Resolution Profile Ruler:
The grating ruler adopts the trusted high-resolution profile ruler of the famous domestic military industry brand.
Precision Linear Guide:
Three-axis adopts precision linear guide to ensure stable accuracy and machine service life.

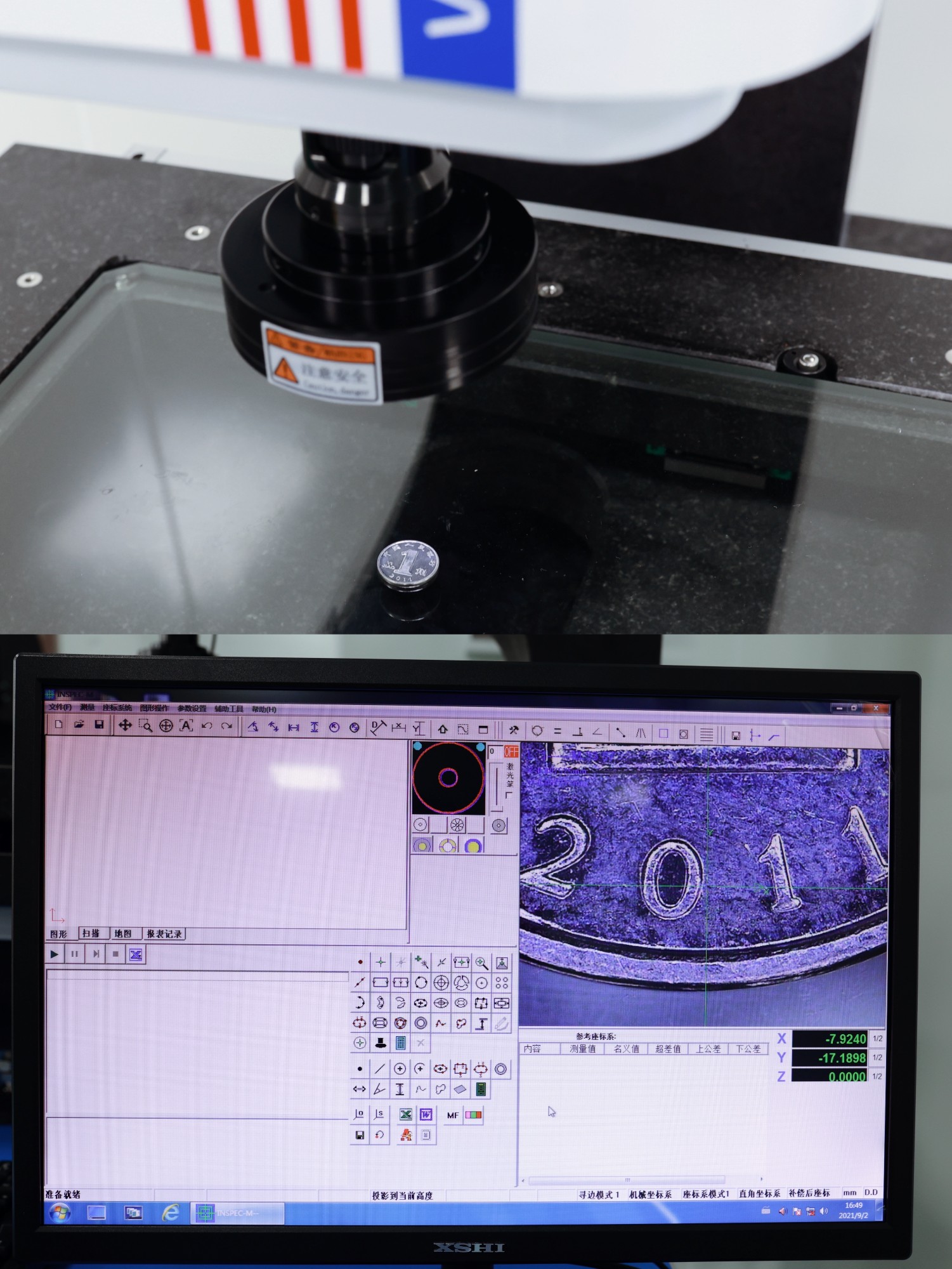

High-Resolution Camera:
High-quality optical system and high-resolution camera, clear picture, making the measurement more accurate.
PARAMETERS
Model GZ-2010 GZ-2515 GZ-3020 GZ-4030 GZ-5040
Travel (mm) 200 x 100 250 x 150 310 x 210 410 x 310 510 x 410
Dimension (LxWxH) (mm) 750 x 500 x 1000 800 x 550 x 1100 800 x 600 x 1100 920 x 720 x 1150 1020 x 820 x 1200
Worktable Dimension 400 x 300 480 x 350 550 x 400 660 x 520 780 x 640
Glass Table Dimension 250 x 150 300 x 200 350 x 250 450 x 350 550 x 450
Measuring Load (kg) 15kg 20kg 25kg 30kg 35kg
Machine Weight (kg) 180kg 220kg 240kg 260kg 340kg
Measuring System Camera ½” Color CCD Camera (1200 TVL)
Zoom Lens magnification 0.7-4.5x
Working Distance: 92mm
Video magnification 26-130x
F.O.V: 7-1.1mm
Scale Resolution: 0.5㎛
Stroke (mm) 200mm (Special customized: Can reach to 400mm)
Accuracy Ex.y ≤2.5+L/200㎛ (L. be regarded as measured length), units:(mm)
Illumination Surface light and Transmitted Light source adopt LED, brightness adjustable
Power 100~220V ±10% (AC), 50~60HZ, 31W
Work environment Temperature: 10-34°C ; Humidity: 30%-76%
