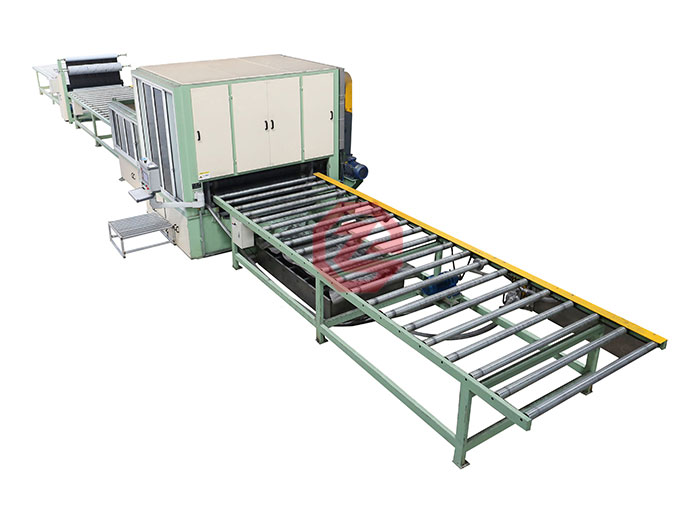

Stainless Steel Polishing Machine

Hot Rolled Plate Polishing/Grinding Machine is mainly used for hot rolled stainless steel plate surfacing processing. Suitable for flat plate , coil plate for all kinds of hot rolled stainless steel plate, composite steel plate, carbon steel , aluminum plate, cooper plate and other plate surface oil grinding/polishing. The equipment can stable in producing. We produce stainless steel thickness can reach 80mm and produce plate width can reach 2580mm and we have over 70 % marketing share in China for hot rolled stainless steel plate polishing machine.

Material Length 1000mm (Minimum)

Material Width 450mm-2580mm

Thickness Range 2 to 80 mm

Surface coarse degree 0.15-0.4μm

Inquire Now

Email:info@corpgz.com

MAIN PARTS

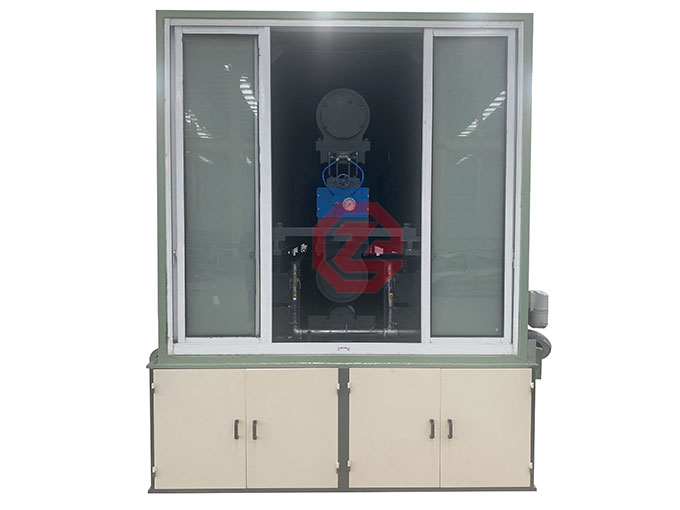

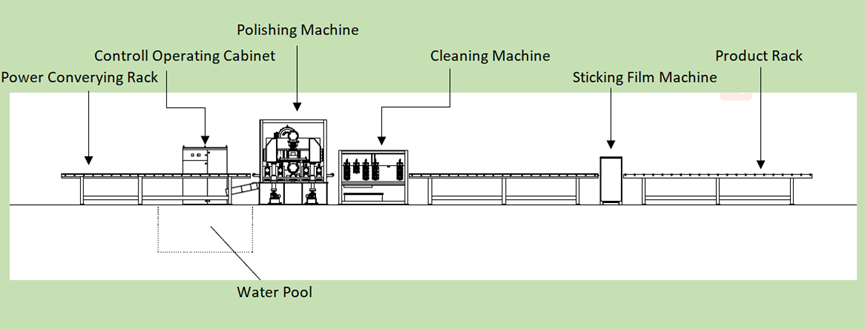

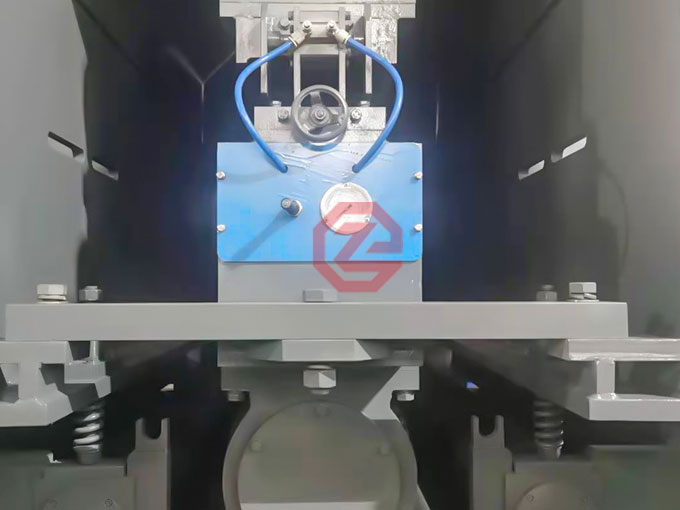

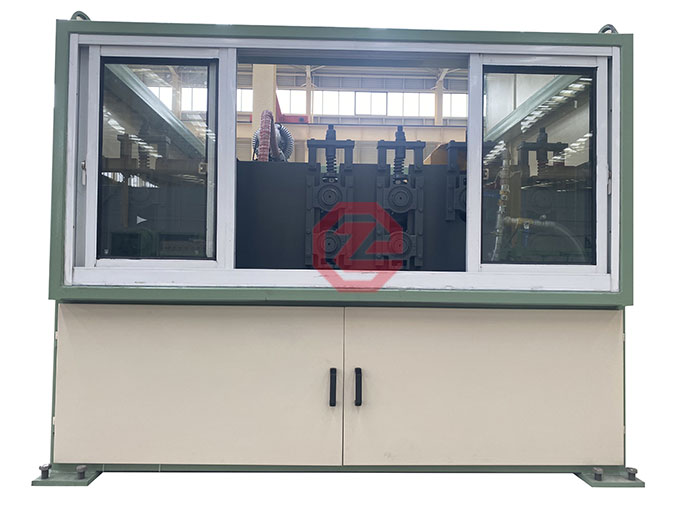

The machine consists of Main Controlling Operating Cabinet, Polishing Device, Cleaning Device, Sticking Film Device, Feeding & Guiding Device, PLC Control System. Each part adopts famous and stable components, each component uses high quality material, and electrical control system use advanced and reliable brand. Each unit of production line is running reliable, long use and convenient operation and maintenance can be insured.

FEATURE

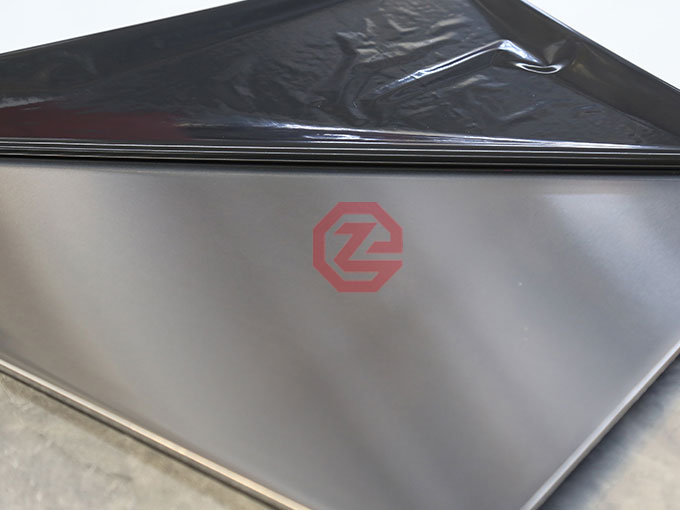

 Product The processed products have no stick mark, no fly plate, uniform grain, Excellent surface quality. The main roller and feeding speed can be adjusted That can ensure the Product’s precision and stability.

 Design The whole machine design is reasonable, no card plate issue, Adjustable and belt correction mechanism with emergency brake system, ensured accurate daily operation with safety and reliable. sitioning.

 Friendly PLC Controller Interface : The machine circuit for PLC programming circuit with friendly PLC controller interface, can be easy operate.

 Energy Conservation And Environment Protection: The patented gearbox can double the power of the motor from 90KW to 180 KW Greatly saving electricity.

PARAMETERS

Technical Specifications：

No.	Item		Unit	Parameters
1	Suitable material	Type		Stainless Steel
		Length	mm	1000mm ≤
		Thickness	mm	2mm—80mm
		Width	mm	200mm-2580mm

2	Surface Coarse Degree		um	NO4 (0.15-0.4μm)
3	Line speed		m/min	0-14m/min
4	Abrasive belt speed		m/s	20-30m/s
5	Total motor power		KW	About 90 KW
6	Electric control system			PLC automatic control system
